Hi all
I am after any info or pic's of a HB Torana set up with the side draft Stromberg carby and extractors.
I have already looked in my Scientific Publications Torana workshop manual for HB and found nothing also have found nothing in my GMH Torana Workshop manual for HB.
I have everthing to do the conversion just need to see how it is set up with linkages, brackets, vacum pipes, fuel line.
I believe that this set up was on the 70 series although mine is an S I picked all the bits and pieces cheap and would like to set it up on my beast.
Any help would be greatly apreciated.
cheers
Side Draft Carby & Extractors on HB Torana
Started by
_Flatliner_
, Jan 10 2007 09:10 PM
8 replies to this topic
#2
makka
-
- Members
-
- 3,559 posts
A møøse once bit my sister
- Name:Cohen
- Location:ya daughters place
- Joined: 08-November 05
Posted 10 January 2007 - 10:00 PM
there is a member with the setup on his, I think it is HB1200
#3
_HB1200_
_HB1200_
-
- Guests
Posted 12 January 2007 - 07:46 AM
Hi Flatliner,
I'll post some pics of the single side draft stromberg setup on the weekend. I've got the single down draft zenith setup on mine at the moment but will be upgrading to the brabham setup once my motor has been rebuilt. Extractors for the HB are fairly rare, I've got some info and small pics of them so you could have them made but I've been quoted $700 to make a set in stainless (unless you've allready got some?). The cheapest option is to go with the twin outlet cast iron headers from the 70 series motors. I'll check my HB manuals, I think the 69 version may go into more detail in the carby section.
My HB
HB1200
I'll post some pics of the single side draft stromberg setup on the weekend. I've got the single down draft zenith setup on mine at the moment but will be upgrading to the brabham setup once my motor has been rebuilt. Extractors for the HB are fairly rare, I've got some info and small pics of them so you could have them made but I've been quoted $700 to make a set in stainless (unless you've allready got some?). The cheapest option is to go with the twin outlet cast iron headers from the 70 series motors. I'll check my HB manuals, I think the 69 version may go into more detail in the carby section.
My HB
HB1200
#4
_Flatliner_
_Flatliner_
-
- Guests
Posted 12 January 2007 - 07:29 PM
Thanks HB 1200,
I have a side draft Stromberg with inlet mainifold and all the linkages, hoses and brackets to fit it, just need to see were the accelerator bracket go's on the firewall and if my fuel and vacum lines are long enough to reach new carby or will I have to make new ones up.
I also would like to see how the accelerator linkages are set up.
Mine is a 1968 S two door with a single Zenith carby set up on it too.
It's a one owner car with 90000 mls on the clock, body has very small amount of rust painted Mayan Gold. All the bright work is in very good nic for it's age.
Still has all the original glass from factory in very good nic with no scratches.
Interior is Pampus Fawn and Prairie Fawn also in very good nic for it's age with only the crash pad showing some cracks and fading from the sun.
Seats are all in very good nic and have had covers on them all there life so back seat is like brand new.
Runs and drives very good for 38 year old car all I have done is replace the clutch.
Model HB 411 then stamped on left hand inner wheelarch inside engine bay is A000175 with a P under the 5 is this the body number?
I also have picked up a standard cast header and two into one pipe set up with the side draft carby and would also like to fit it to my car I have a very good exhaust maker over here so I was hoping to show him a pic of how it looked on the car other wise he can just use what I have and copy it.
I have also picked up a complete motor rebuilt 10 years ago but never used for a carton.
Plus good old e-bay has given me two "nos" tail lights, cluch cable, timing cover, hand brack cable, front indicator lenses and spare clutch set up.
Like you I am also starting to hunt things down and grabing them, this stuff is getting hard to find over here.
Look foward to seeing your pic's and hopfully finding some info on this set up.
I can e-mail you some picks of my HB if you like.
Cheers Rob
I have a side draft Stromberg with inlet mainifold and all the linkages, hoses and brackets to fit it, just need to see were the accelerator bracket go's on the firewall and if my fuel and vacum lines are long enough to reach new carby or will I have to make new ones up.
I also would like to see how the accelerator linkages are set up.

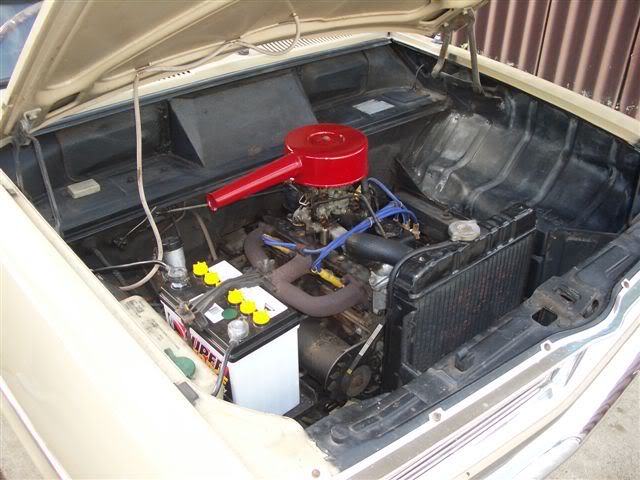

Mine is a 1968 S two door with a single Zenith carby set up on it too.
It's a one owner car with 90000 mls on the clock, body has very small amount of rust painted Mayan Gold. All the bright work is in very good nic for it's age.
Still has all the original glass from factory in very good nic with no scratches.
Interior is Pampus Fawn and Prairie Fawn also in very good nic for it's age with only the crash pad showing some cracks and fading from the sun.
Seats are all in very good nic and have had covers on them all there life so back seat is like brand new.
Runs and drives very good for 38 year old car all I have done is replace the clutch.
Model HB 411 then stamped on left hand inner wheelarch inside engine bay is A000175 with a P under the 5 is this the body number?
I also have picked up a standard cast header and two into one pipe set up with the side draft carby and would also like to fit it to my car I have a very good exhaust maker over here so I was hoping to show him a pic of how it looked on the car other wise he can just use what I have and copy it.
I have also picked up a complete motor rebuilt 10 years ago but never used for a carton.
Plus good old e-bay has given me two "nos" tail lights, cluch cable, timing cover, hand brack cable, front indicator lenses and spare clutch set up.
Like you I am also starting to hunt things down and grabing them, this stuff is getting hard to find over here.
Look foward to seeing your pic's and hopfully finding some info on this set up.
I can e-mail you some picks of my HB if you like.
Cheers Rob
#5
shanegtr
View Garage
-
- Members
-
- 533 posts
Forum Fixture
- Name:Shane
- Location:Tom Price, Pilbara WA
- Car:LJ 2 door
- Joined: 10-November 05
View Garage
Posted 12 January 2007 - 10:37 PM
Better still post em up hereLook foward to seeing your pic's and hopfully finding some info on this set up.
I can e-mail you some picks of my HB if you like.
Cheers Rob
Edited by shanegtr, 12 January 2007 - 10:38 PM.
#6
_HB1200_
_HB1200_
-
- Guests
Posted 13 January 2007 - 10:07 AM
Here is the accelerator linkage diagram:
HB extractors:
CD150 setup (I can't find the original vacuum advance tube):
Twin branch exhaust pipes:
HB1200
HB extractors:
CD150 setup (I can't find the original vacuum advance tube):
Twin branch exhaust pipes:
HB1200
#7
_Flatliner_
_Flatliner_
-
- Guests
Posted 13 January 2007 - 02:32 PM
Thanks HB 1200,
That info has given me a better idea how it go's.
The last pic is the set up I have with the cast headers.
Linkage diagram is spot on because all I got was a heap of rods and brackets now I can make out what go's were.
Cheers Rob
That info has given me a better idea how it go's.
The last pic is the set up I have with the cast headers.
Linkage diagram is spot on because all I got was a heap of rods and brackets now I can make out what go's were.
Cheers Rob
#8
tinkers
-
- Administrators
-
- 3,799 posts
Admin
- Name:Kerri
- Location:Perth - Gold Coast - Brisbane
- Car:LX Hatch & VX Clubsport & VS Ute
- Joined: 04-February 07
Posted 13 January 2007 - 08:43 PM
Photos added
#9
_HB1200_
_HB1200_
-
- Guests
Posted 14 January 2007 - 12:41 AM
Thats a nice HB you've got there, how are your mechanicals? Mine are almost stuffed and some parts are extremely hard if not impossible to find. I'm taking it on the HTC Torana cruise today so I replaced the radius rod bushes and front shocks. It was shocking to drive before that. For your reference, Monroe LC 4cyl front shocks fit and have the same length/stroke. The internals may not be 100% correct but no one lists them for the HB anymore. I've got all the other bushes/balljoints for the front through rares. I also bolted up a GTR front swaybar and it fits fine except for a couple spots which need massaging on the out-riggers. Not sure if it will be an improvement but I'll try it out when the whole xmember is rebuilt and converted to disc brakes.
HB1200
HB1200
